| Zinc Alloy Die Casting housing and cylinder, Brass Key. |
| NA14 keyway, counter clockwise rotation to open |
| 6 pin tumbler lock (nickel Plated) |
|
|
| Die cast cylinder with Plated face |
|
|
| Brass pins |
|
|
| Plated steel cams |
|
|
| Spring steel locking clip |
|
|
| Locked position LEFT UP DOWN,90 degrees to open |

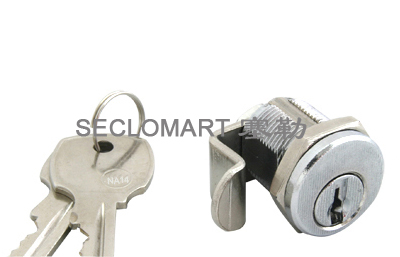

| Includes 2 keys |
|
|
| Cam locking nut |
|
|
| KEYING- Available keyed differently |
|
| Key removable in locked position |
|
| Application Interior architectural mail boxes used in apartments, condominiums, schools, lobbies. |
| Single SLOT FOR CLIP,double slot FOR NUT |
|
|
